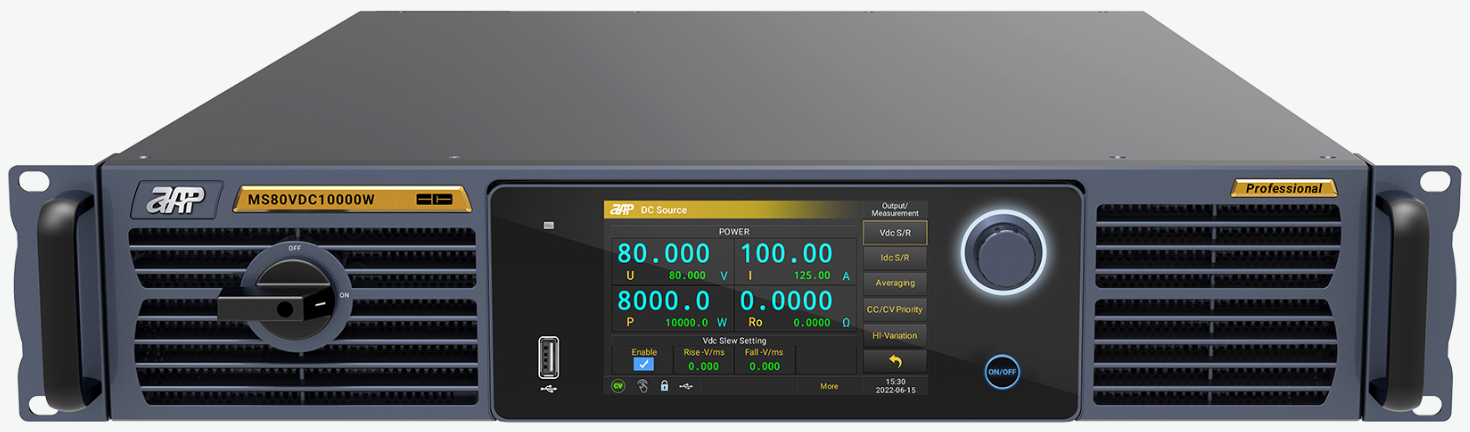

Momentum S Series – Wide Range Programmabale DC Power Supply

Momentum S series is a single output programmable DC power supply with single phase or three phase input options, it supports universal input voltage. With high power density structure design to achieve 10kW output power in 2U model, it can meet higher power requirements through optical fiber parallel. Moreover, it adopts a wide-range output design, which expands the output range of current and voltage at full power output, making it more flexible to use. High-end appearance with a simple UI touch interface and built-in unique test functions make them to meet the test applications such as system integration testing, battery charging and simulation, automotive electronic testing, solar panel simulation, etc..

Description

Product Features

Full touch flip panel design, simple UI interaction interface, easier and faster operation.
Universal input voltage, single/three-phase input optional.
High power density structure design, 2U/10kW.
Adjustable voltage/current slew rate.
List/ Step mode programming.
Supports SCPI commands, provides web GUI function.
Wide range output design, full power provides a wider range of voltage and current combinations.
Optical fiber parallel communication, strong anti-interference, extremely fast transmission, unchanged performance(Optional).
DDS arbitrary function generator.*
Solar panel I-V curve simulation function*
Smart 3-stage charging algorithm simulation.*
Battery simulator function*
Built-in standard automotive power network voltage curves.*
TTL/Analog control and monitoring(Optional)
Full protection: OVP, OCP, OPP, OTP and SCP.
Standard USB communication interface, optional GPIB/LAN&RS232/RS485/CAN.
Constant voltage (CV), constant current (CC) and constant power (CP) operation mode, CC or CV working priority setting.
* Only professional version units support these functions
